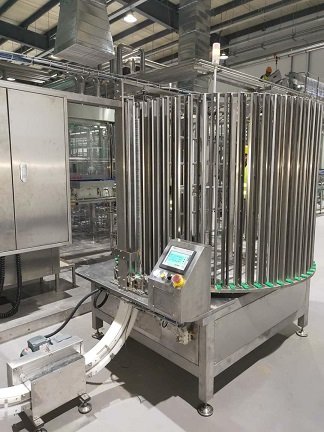

Round Type Lid Feeder UF-B60-A1 UF-B40-A1 UF-B20-A1
Description
Compatible Lid Sizes: 200 lids – 305 lids.
1. Can Lid Feeder B20-1:
1.1) The storage capacity of the can lid feeder is 20 rolls, and the maximum production capacity of the machine is 600 pieces/min. It only takes 1 min to load the feeder at once.
1.2) The can lid feeder can start and stop synchronously with the filling machine in automatic state, without manual operation.
1.3) The feeder could intelligently detect the reverse cap to reduce the damage to the machine caused by external factors. Remove manually once the system alarms.
2. Floor space (L*W*H,mm)
1600 * 800 * 2500
3. Basic configuration of the can lid feeder: (200-209 lid / 20 rolls load capacity)
|
Product name |
model |
qty |
unit |
|
Can Lid Feeder |
CLD-B 2 0-A1 |
1 |
set |
|
Control System |
1 |
set |
|
|
Lid stopper |
CLD202-1-2 |
1 |
set |
|
Lid pusher |
CLD202-1-3 |
1 |
set |
|
Elbow Lid Cage |
CLD202-1-4 |
5 |
pieces |
|
202 Lid cage |
CLD202-1-5 |
5 |
Meter |
1) The main frame and spare parts of the can lid feeder are made of 304 stainless steel
2) Drive motor reducer: SEW Power: 1KW 380V
3) Control system PLC: Siemens
4) Inverter: Danfoss
5) External signal switch: Autonics
6) Main control element: Schneider
7) Pneumatic parts: AirTAC Air pressure: 0.4MPa
